Tips to protect your equipment from Lightning.
This is my personal opinion getting from basic information to protect equipment from lightning surge.
Home /Standard /IEC: SPD for Signal LinesVoltage protection level and durability test
Voltage protection level and Impulse Durabilty are important items to select SPD for signal lines. There are big 4 categories (A, B, C, D) and have sub categories in some of them. Test with category C is essential for both tests and test of other category is a option.
IEC: Impulse limiting Voltage

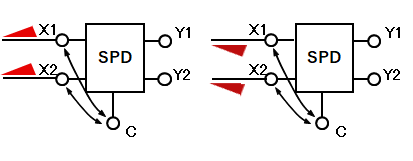

Apply impulse selected from cotegory C, 5 tiems between the terminal X1-C and X2-C both positive and negative polarities.

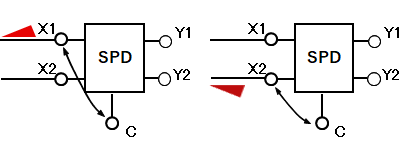

It is Ok to apply both X1-C and X2-C at the same time or apply eath terminal separatly. Test between the terminal X1-X2 is option. You can also do additoinal test selected othe categories.
IEC: Impulse Durabilty
Apply impusle selected from cotegory C between the terminal X1-C and X2-C. Half of it is using positive impulse and remain times is using negative impulse.
Test between the terminal X1-X2 is option. You can also do additoinal test selected the other categories.
Ctegory C1, C2 seem siluated induced surge current which may repeatedly come in and number of applying times is relativly big numbers(half of them are positive and remain is Negative). D1 is sumilated lightning current(direct strike) and then number of test is total 2 times(one positive and negative impusle). There is no description about interval of impulse, but indicate to proceed test with confirmation that SPD does not heat up during the test.

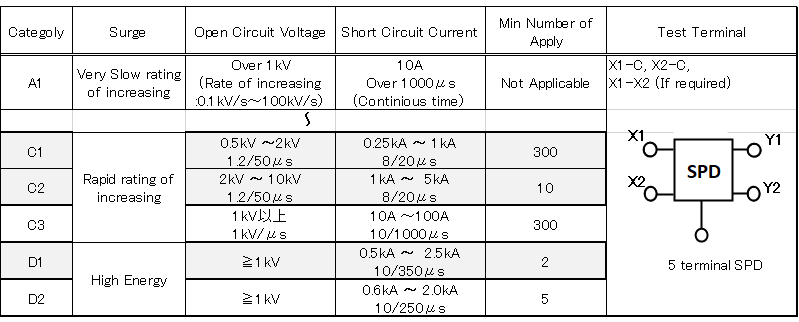

Table of test conditon for impusle limiting voltage and durabilty test.
Impusle limiting voltage:
Apply impusle selected from cotegory C 5 tiems between the terminal X1-C and X2-C both positive and negative polarities.
Impusle Durabilty：
Apply impusle selected from cotegory C between the terminal X1-C and X2-C. Half of it isusing positive impusle and remain times is using negative impusle.
Again contents in this Web site is my Personal Opnion. I did my best for the contents of this site, but may have some mistakes. We applogize if such things happen. Please remember that we will Not Take Any Resposibilties, even if you take countermeasures for lighting surge following on this contents and have any damage directly on your equipment and/or some other seconday damages.Please do any lightning protection based on your own resposibilty.
