SPD Disconnector
Rating of Circuit breaker will be selected by max current of PV panels and it wil does not work when generation of PV panel is very low current condition, such a rainy days. SPD may have damage by lighting strik such condition and it have to disconnect circuit in case of short condiotn of SPD.

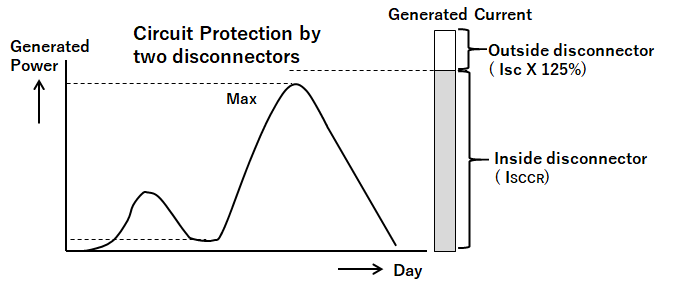

Outside and internal disconectorSPD
Generaion power of PV panel changes 0%〜100% depending upon weather condition.
For example, Max current of a system is 100A. Rating of circuit breaker will be selected based on this information. However
generated current will be 10A or so, in raniy days. SPD have to protect circuit by itself if SPD has damage by lightining current.
European Norm(European Standards）
EN 50539-11 is standard of SPD for PV applications. This requires SCCR: Short Circuit Current Rating of SPD, so that SPD can cut circuit by itself. We strongly recomed to check SCCR spec of SPD for PV allication.
