Protectin Area by three methods, Angle Rolling Sphere and mesh

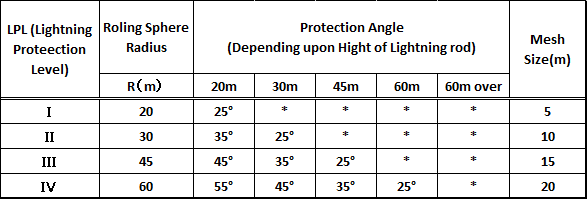

IEC 61024-1 table 1

IEC makes 4 Lightning protection level. Level 1 is most high level and you need to install necesary equipment to protect from big lightning surge. IEC 61024-1, IEC 62305-1,-3,-4 shows you concept of lightning protection. There are 3 methods for lightning protection, called External lightning protection in the IEC, angle and rolling sphere of lightning rod and mesh.

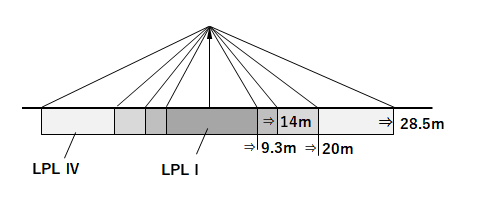

Protection Area of 20m height Rod(according to Protection Angle method)

Image of 2-D area
Dependin upon angle from lIghtning rod、
protection area is changes.

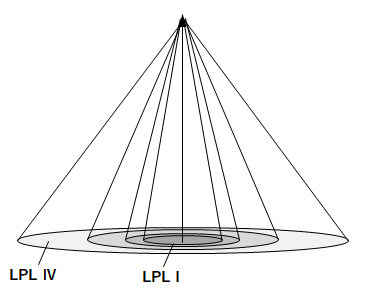

3-D image of protection area

Protection area of LPL(Lightning protection level) 1 is narrow and we need lots of rod to cover the same area of LPL 4. Proteciton area of rolling Sphere method is little bit different from protection area of Angle method.

Image of LPL I protection area

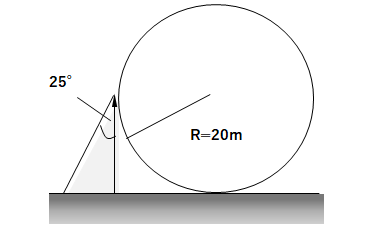

Proteciton area of Angle and rolling sphere.(LPL I)

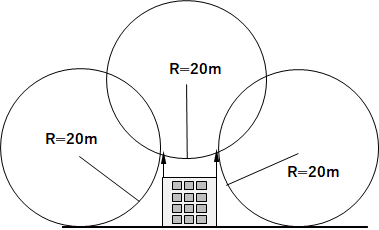

Protection area by rolling sphere (LPL I)

Mesh method is needed to cover side of lbulidings, if its height is highter than 60m.
