Tips to protect your equipment from Lightning surge.

This is my personal opinion getting from basic information to protect equipment from lightning surge.

Home /External lightning /Amount of Lightning

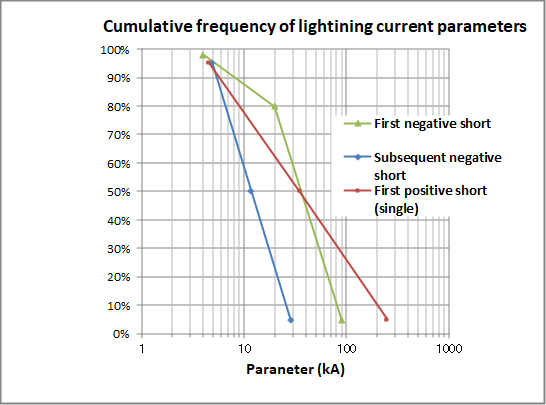

Tabulated valuse of lightning current parameters taken from CIGER ( Ref. IEC 62305-1 Table A.1）

Less than 40kA is about 50%

Above graphic is based on the international Council onLarge Electrical Systems (CIGRE). You can see data on IEC 62305-1 Table A.1 We need to make protection system for 200kA lightning for the facilies fo LPL I.

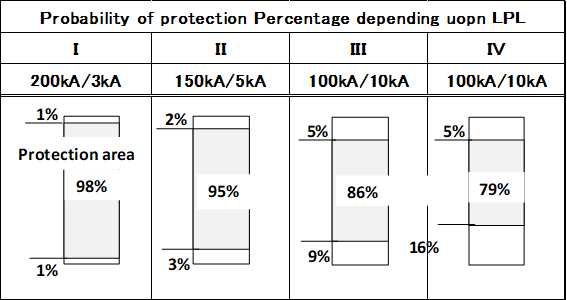

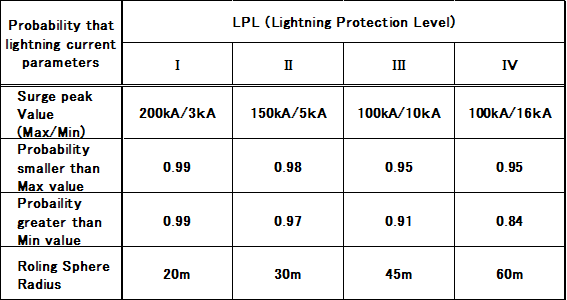

Probability of protection by Lighting Rod（Ref IEC 62305-1 Table 6,7）

LPL I still not 100%

Probality of protection decrease by LPL

Probability to protect equipment is depending upon LPL level and decrese with lower LPL level. It shows that there is No perfect protection system even LPL I. 　

”Go Prev.”

Again contents in this Web site is my Personal Opnion. I did my best for the contents of this site, but may have some mistakes. We applogize if such things happen. Please remember that we will Not Take Any Resposibilties, even if you take countermeasures for lighting surge following on this contents and have any damage directly on your equipment and/or some other seconday damages.Please do any lightning protection based on your own resposibilty.
